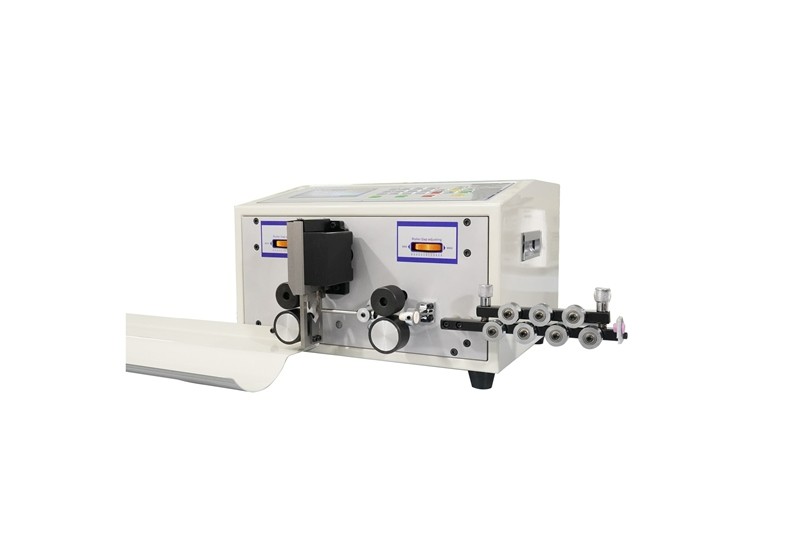

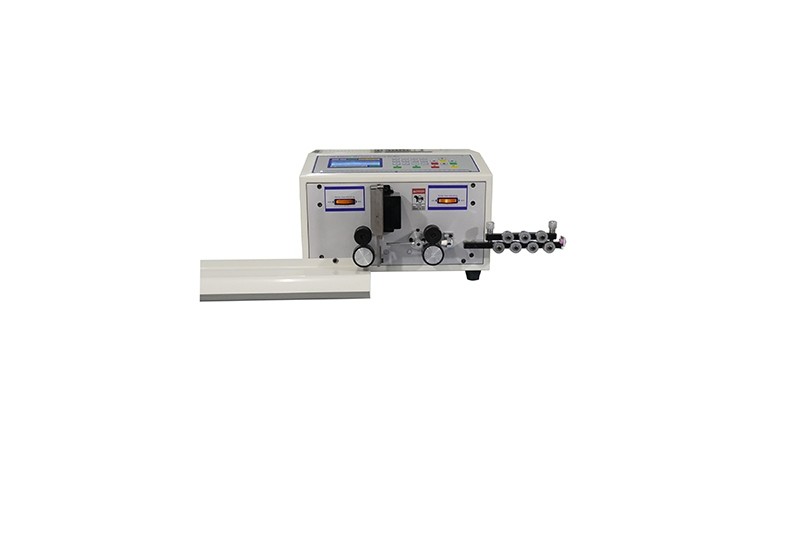

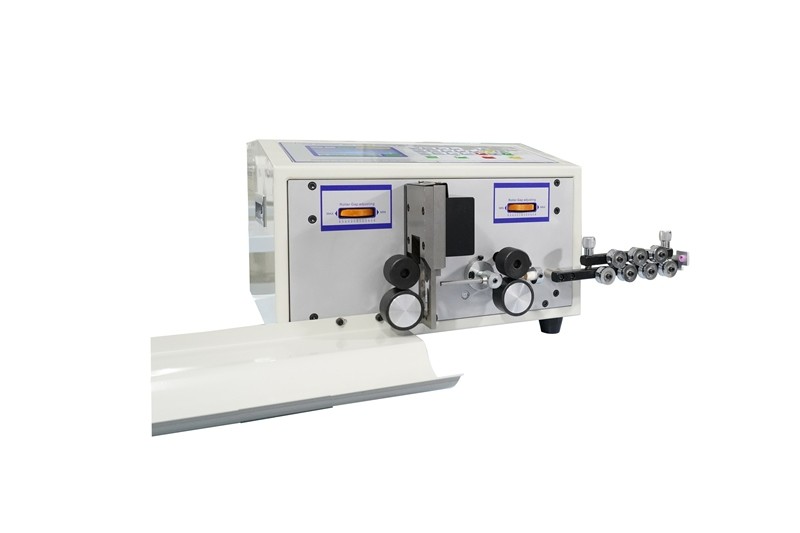

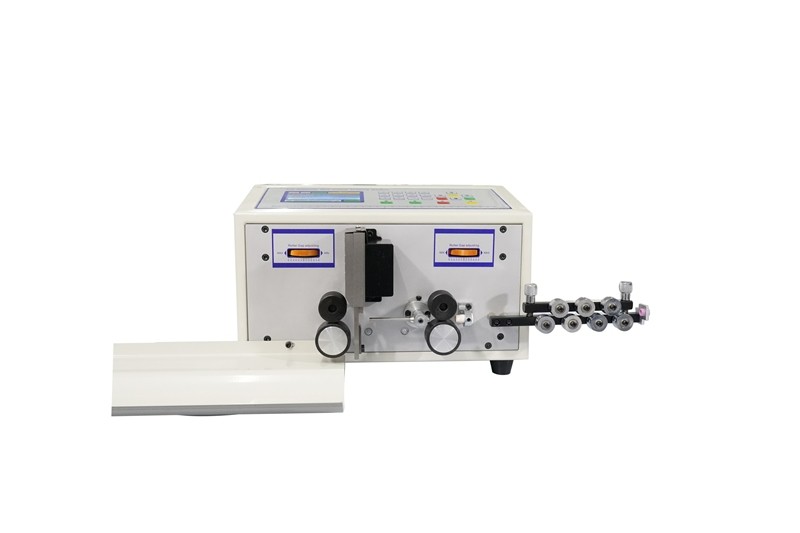

Two-wheel drive wire stripper

Model：HL-C/N

Features:

○ Function: wire cutting, both ends stripping, middle stripping

Specifications:

Weight：25KG

Electrical connection: 110V/220V 50HZ/60HZ

Power：200W

Operation interface: English/Chinese (LCD display)

Machine dimension: 460*470*325mm

Wire length range：1～10000mm

Strip length：Front end:0-30;rear end:0-15mm

Length accuracy： ± (0.002xL)mm

Intermediate peeling times:13 times

Wire cross section: 0.1～2.5mm²

Max conduit inside diameter:￠6mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: hard tungsten steel

Transport speed: (L=100MM piece/hour） 4000-5000 pieces

Driving mode: two-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
