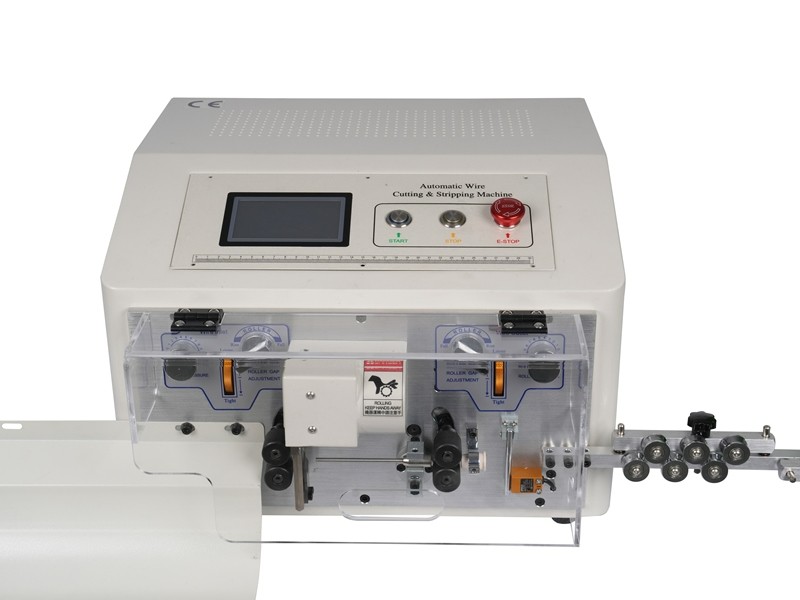

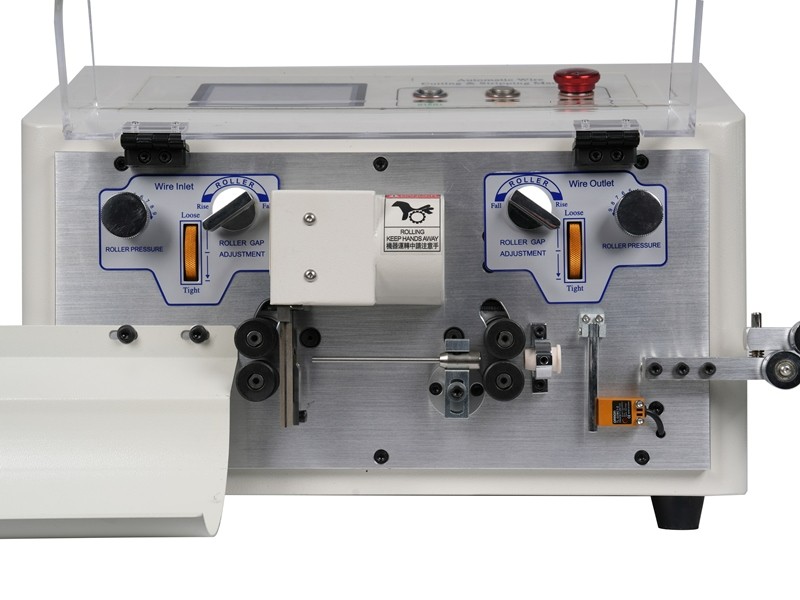

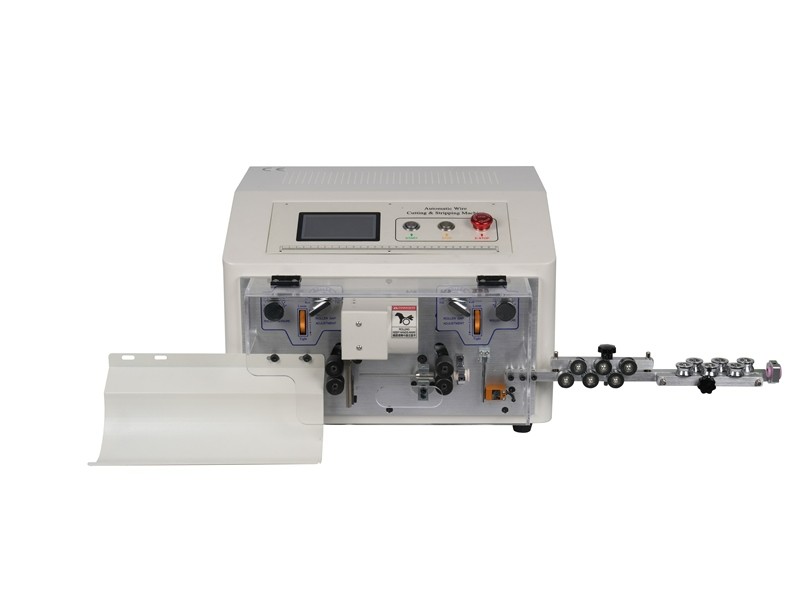

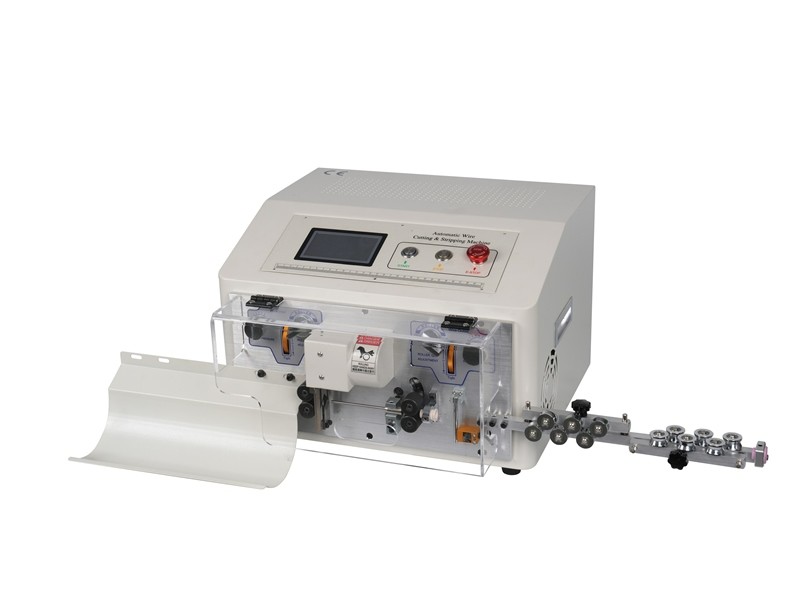

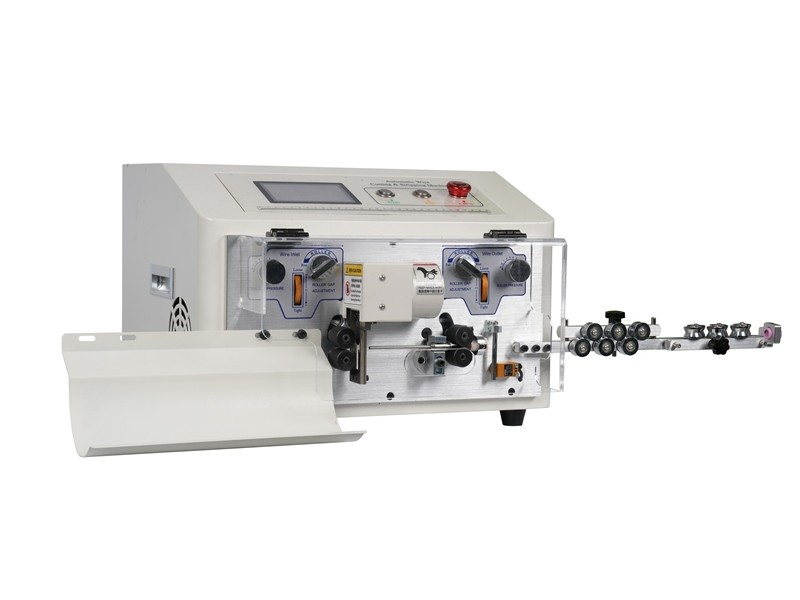

Four-wheel drive wire stripper with touch screen

Four-wheel drive wire stripper with touch screen

64-bit intelligent control system and touch screen operation interface

○ Hundreds of information can be stored and called at any time, with fast efficiency and convenience

○ Cutting length and stripping length can be set arbitrarily within the processing range, with quantitative and timing start functions

Model: HL-SD/S
Brand: Hilong

Model	HL-SD/S
Weight	28KG
Electrical connection	110V/220V 50HZ/60HZ
Power	300W
Operation interface	4.3 inch Chinese and English switching touch screen display
Machine dimension	460470325mm
Wire length range	1～9999mm
Strip length	Front end:0-30;rear end:0-15mm
Length accuracy	± (0.002xL)mm
Intermediate peeling times	16 times
Wire cross section	0.1～4mm²
Max conduit inside diameter	￠6mm
Wire material	PVC,Teflon,Braided,Fiberglass wire
Blade material	hard tungsten steel
Transport speed	(L=100MM piece/hour） 4000-5000 pieces
Driving mode	four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
