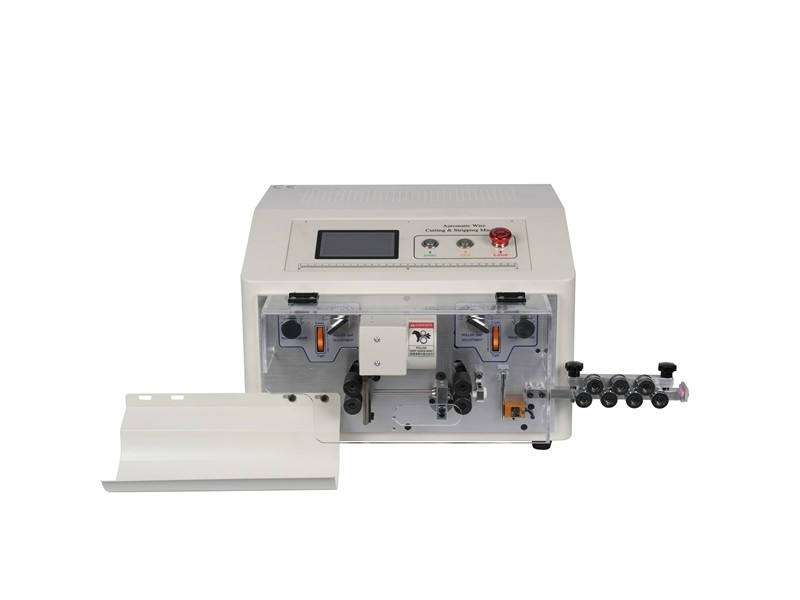

Double wire stripper with touch screen

This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;

Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more;

LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

One-time cutting and stripping, and splitting at the same time;

Saving labor and time and increasing productivity


Model: HL-SDB/S
Brand: Hilong

EMAIL

Model:HL-SDB/S

Weight:28KG

Power:300W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: 4.3 inch Chinese and English switching touch screen display

Machine dimension: 460*470*325mm

Wire length range:1~9999mm

Strip length:Front end:0-30;rear end:0-15mm

Length accuracy: ± (0.002xL)mm

Intermediate peeling times:16 times

Wire cross section:  Double wire 0.1~2.5mm²; Single wire .1~4mm²

Max conduit inside diameter:¢6mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: hard tungsten steel

Transport speed: (L=100MM piece/hour) 5000-10000 pieces

Driving Model mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
