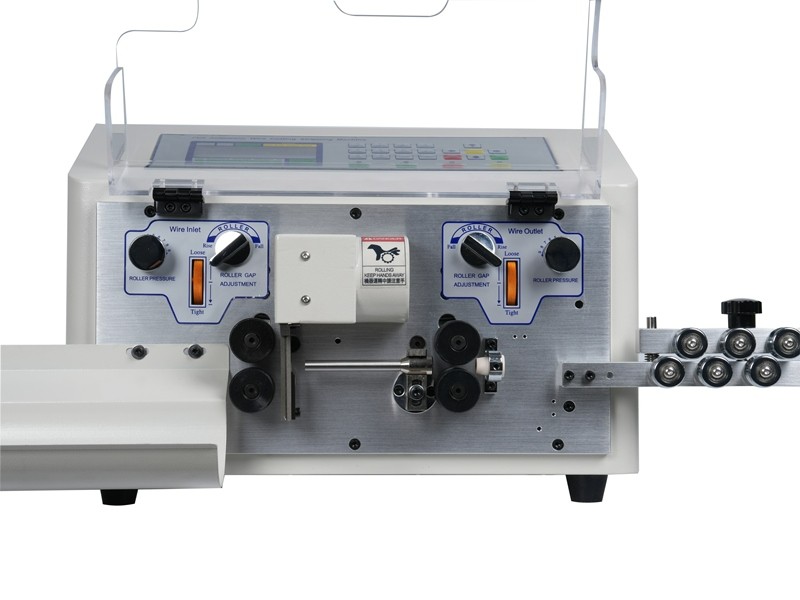

6 square thick wire stripper

Model：HL-E/N

Features：

○ Belt feeding cables, no embossing and scratches

○ Uses specific axial positioning and advanced tool holders, improving accuracy and production rate

○ Optional auxiliary equipment: automatic wire feeder, wire collector, etc.

○ Full servo motor equipment, upgraded configuration.

Specifications:

Weight：28KG

Electrical connection: 110V/220V 50HZ/60HZ

Power：300W

Operation interface: English/Chinese (LCD display)

Machine dimension: 460*470*325mm

Wire length range：1～10000mm

Strip length：Front end:0-35;rear end:0-15mm

Length accuracy： ± (0.002xL)mm

Intermediate peeling times:13 times

Wire cross section: 0.1～6mm²

Max conduit inside diameter:￠8mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: High-speed steel

Transport speed: (L=100MM piece/hour） 3000-5000 pieces

Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
